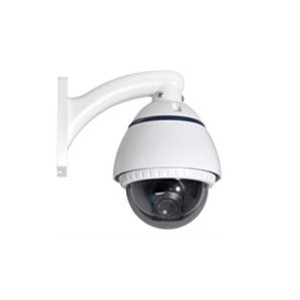

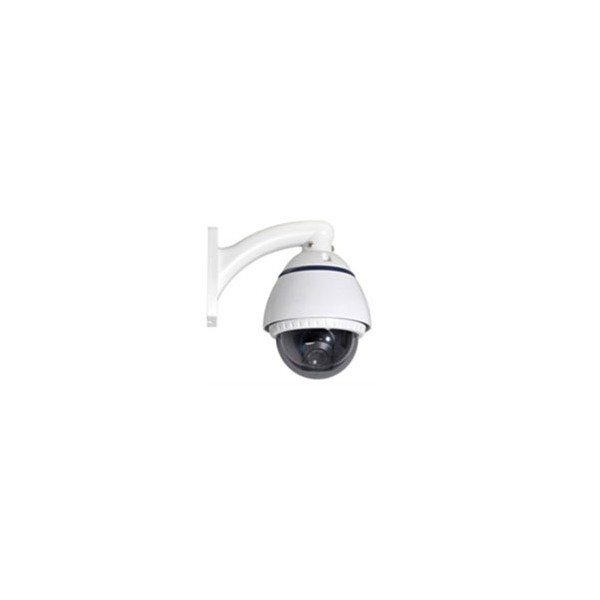

Low Light Color Fish-Eye 360 Degree Camera
Vandal & Water-proof BN-FE360LCDV
Features:
1) 1/3" high sensitivity CCD image sensor
2) New ISP solution design.
3) Horizontal resolution 700TVLines
4) Unique photoelectron multiplier and noise reduction technology
5) Mini. illumination 0.00001Lux @F1.2
6) use in low light conditions without IR LEDs
7) Color image both day and night with IR LED

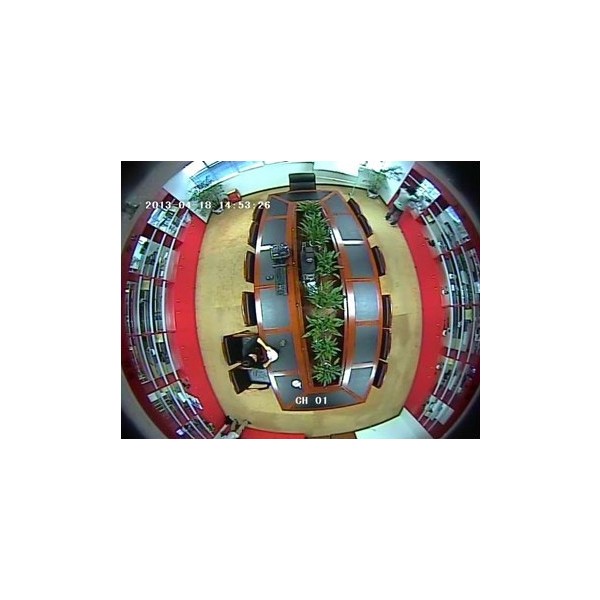

8) 360 degrees panoramic lens built in
9) OSD control button on cable
10) Waterproof IP68 and vandal proof metal dome case
Specification:
|
Product Name |
360 Degrees Low Lux Color Vandal Dome Camera |
|
Model No. |
BN-FE360LCDV |
|
Imaging sensor |
1/3" high sensitivity CCD image sensor New ISP solution design |
|
Pixel |
PAL:976(H)x 582(V)/NTSC:976(H)x 494(V) |
|
Scanning |
2:1 Interlace |
|
Sync. Mode |
Internal |
|
Horizontal/Vertical Frequency |
PAL:15.625 kHz, 50.00 HZ / NTSC :15.734kHZ,59.94HZ |
|
Resolution |
Color 650TVL, BW 700TVL |
|
Video Output |
1.0Vp-p/75Ω Video composite video signal |
|
S/N Ratio |
>50dB Max.( AGC OFF) |
|
Illumination |
0.00001Lux /F1.2 (Color) |
|
Gamma correction |
0.45 |
|
Gain control |
AGC |
|
E-Shutter |
PAL:1/50~1/100,000 s /NTSC:1/60~1/100,000s |
|
D/N Mode |
Auto day and night switching |
|
Lens |
360 degrees panoramic lens built in |
|
Power Supply |
DC12V±10%, or DC12V / AC24 ±10% (3w) |
|
Operation Temperature and Humidity |
-10℃ ~50℃, 20% ~90% RH |
|
Storage Temperature |
-40℃ ~60℃ |
|
Dimension |
Ø 141X213X215mm |
|
Weight |
1370g |
