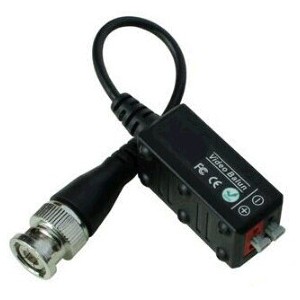

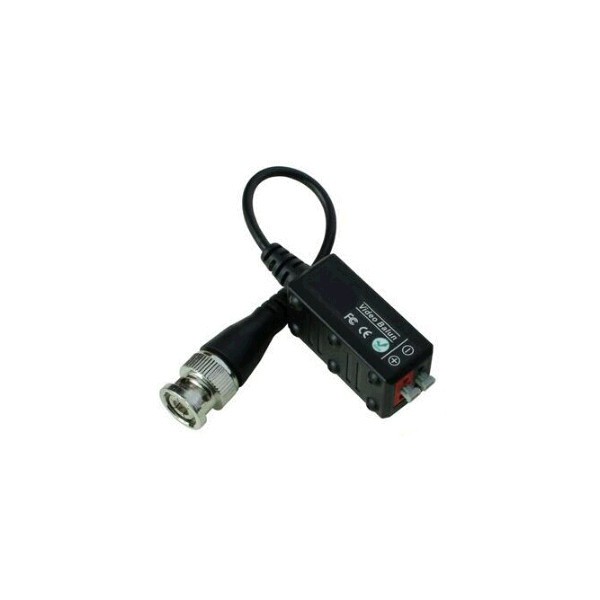

UTP AHD cameras video balun HD-CVI balun

UTP AHD cameras video balun HD-CVI  balun

Model CVI-102C

UTP HD -CVI HD -TVI HD-AHD cameras video balun

Quick Details

Place of Origin: Guangdong, China (Mainland)

Function 1: Compatible with all HD-CVI, HD-TVI, HD-AHD

Function 2: Up to 450m for 720P CVI Cameras

Function 3: Up to 250m for 1080P CVI Cameras

Function 4: Up to 250m for 720P/1080P TVI Cameras

Function 5: Up to 320m for 720P AHD cameras


Specifications

Compatible with all HD-CVI, HD-TVI, HD-AHD

Up to 450m for 720P CVI Cameras

Up to 320m for 720P AHD cameras

Features

Compatible with all HD-CVI, HD-TVI, HD-AHD

Up to 450m for 720P CVI Cameras

Up to 250m for 1080P CVI Cameras

Up to 250m for 720P/1080P TVI Cameras

Up to 320m for 720P AHD cameras

NTSC, PAL, and SECAM video formats

No power required

60dB cross talk and noise immunity. Compact size and easy installation

Built-in transient suppression protectionInnovative combinable design

Technical Specifications

Frequency response: DC to 60Mhz

Attenuation: 0.5dB type

CMRR: 60dB

Surge protection:4KV ESD:8KV

Connectors: Male BNC and terminal blocks

Impedance: BNC: 75ohms

Terminal: 100ohms

Working Temperature: -10℃ to +70℃

Storage Temperature: -30℃ to + 70℃

Humidity : 0 to 95%

Dimension: 33mm x 17mm x 16mm (excluding connectors)

Material: ABS Plastic
