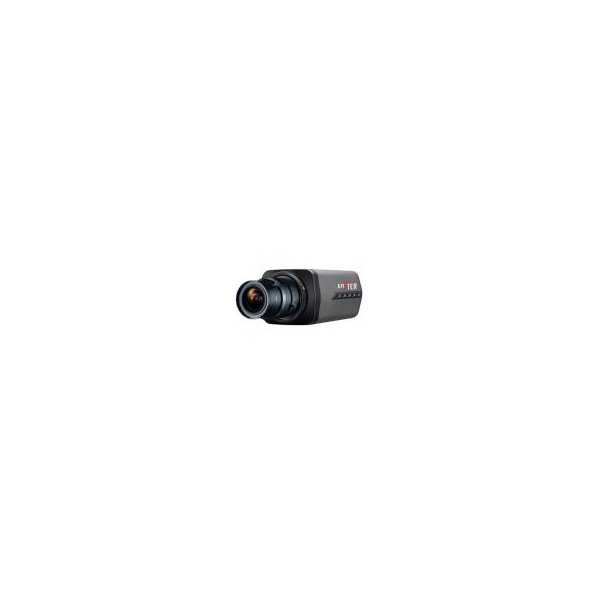

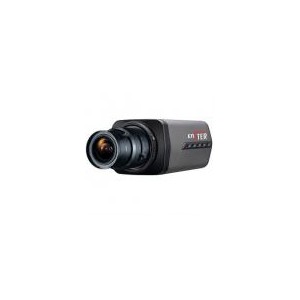

H.265 4.0Megapixels BOX IP Camera With 4mm lens Audio POE

Model No.

 EST-IPH4504

Camera Type

 Box IP Camera

System

Embedded RTOS design

Camera

Effective Pixels

4.0 Megapixels

Main stream:2592*1520;1920*1080

Sub stream:1280*720

Frames Rates

PAL:25fps(2592*1520)/(1280*720)

NTSC:30fps(1920*1080)/(1280*720)

Image Sensor

1/3" OV4689 CMOS Sensor

4 Megapixel resolution

DSP

Dual core   32-bit DSP

(Hi3516A)

Min. Illumination

Color   0.01Lux@F1.2

  B/W   0.001 Lux@F1.2

Adjust Parameters

DWDR,BLC,DNR,AE,AGC,D&N,Mirror,Flip,etc.

Video

Compression

H.265 Main profile

Stream

support dual stream,AVI format

Bit Rate

support 0.1M ~8Mpbs bit rate adjustable

Frame Rates

support 1~30fps adjust

Audio

Input and output

1ch   input( micphone),

1ch output( Speaker&micphone) Optional

Compression

G.711 compression,support two-way audio intercom,

support audio and video synchronized output

Alarm

Types

Motion Detection, Video Blind , Video Loss

Network

WEB Browser

Support WEB remote config

( IE, Safari, Google Chrome, Firefox etc.)

Smart Phone

mobile remote Monitoring (iPhone,Android,

Windows Mobile,BlackBerry,Symbian)

CMS Software

Uniform CMS Software

(multiple devices management system)

Cloud P2P

www.p2pipc.net,MYEYE platform and

 other program,Offer SDK

Network

1   *   RJ45,10/100M,Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/SMTP

ONVIF

Support (ONVIF 2.4)

POE

Support(optional)

WIFI

N/A

General

Language

20 kinds of languages such as English, Finnish,

French, German, Greek,Italian, Japanese, Polish,

Portuguese,Russian, Spanish, Thai,

S-Chinese,T-Chinese and Turkish

IR Cut Filter

Set of double light switch IR-CUT filter

Lens Mount

Varifocal Lens3.6 -10mm(6MP)

Infrared Luminary

N/A

Infrared Wavelength

N/A

Illuminate Distance

N/A

Waterproof Criterion

IP 55

I/O Connector

1*DC Connector ,1* RJ45(10/100M Network)

Supplied Voltage

DC12V/PoE(802.3af/820.3at)

Power Consumption

IR On: 600mA max., IR Off: Less than 200mA

Working Environment

-10°C~+60°C, 10%~90%

( Built in Heater being optional added

for enviroment lower than -20° )

Dimensions

60*60*185mm

Weight

1.5 kg
