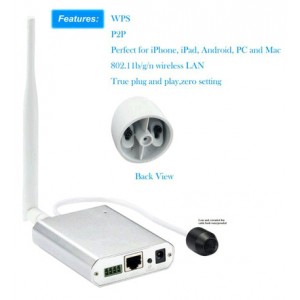

P2P wireless hidden mini camera hidden camera wifi ATM























P2P wireless hidden mini camera hidden
camera wifi ATM NC128W
Mini Wifi Hidden IP Camera Introduce:
This wifi wireless cctv secuurity p2p mini network camera with no network configuration,
Support POE power supply. no IP address settings or port forwarding required to connect to the
camera, just enter the supplied UID & password and you will be connected to the live video with
your iPhone, iPad or Android devices anytime, anywhere. In a real time,from anywhere in the
world ,via,any internet-enabled computer or phone.If any motion is detected,the Wifi peephole
camera can instantly E-mail you a snapshot, or recordthe video to a micro SD card.
Such Network camera is the idael all-in-one surveillance & recording
solution for home business
security.
1.Remote Configuration by iPhone and iPad
2.Perfect for iPhone, iPad , Android, PC and MAC
3.True plug and play, zero setting
4.Cloud Computing Technology
5.Multi-screen Monitoring: 1~ 36
|
Camera |
|
|
Image device |
1/4 CMOS |
|
Pixels |
920,600 |
|
White Balance |
Auto |
|
Exposure mode |
Auto |
|
Gain |
Auto |
|
Viewing angle |
Horizontal:55°, Vertical:31° |
|
Focal length |
F=3.7mm |
|
Aperture |
F2.0 |
|
Min.illumination |
1.0 Lux(0 Lux in night vision mode ) |
|
Infrared LED |
No |
|
Night Vision Distance |
No |
|
IR cut filter |
No |
|
Distance between Lens and main body |
10m |
|
SD card support |
16Mb-128Gb |
|
Network |
|
|
P2P |
YES |
|
WPS |
YES |
|
Image compression |
H.264,MPEG-4,MJPEG |
|
Image resolution |
1280x720(720P),640x480(VGA), 320x240(QVGA), 160x120(QQVGA) |
|
Max. frame rate |
30fps @1280x720 |
|
Audio compression |
AAC |
|
External microphone |
allow audio input but need sound pick-up |
|
Simultaneous viewers |
16 |
|
Authentication |
ID/Password, Administrator/General User (Up to 64) |
|
Network protocols |
TCP,UDP,IP,ARP,ICMP,DHCP,DNS,HTTP,FTP, SMTP,NTP,UPnP,DDNS |
|
Stream type |
HTTP, RTSP/RTP/RTCP, 3GPP |
|
Network connection |
Ethernet (10BASE-T/100BASE-TX) |
|
Wireless LAN |
|
|
Wireless technology |
IEEE802.11b/g/n |
|
Frequency |
2.412-2.462GHz |
|
Transmission speed |
150Mbps/54Mbps/11Mbps/5.5Mbps/2Mbps/1Mbps(Auto Switch) |
|
Security |
WEP (64/128 bit),WPA-PSK(AES/TKIP), WPA2-PSK(AES/TKIP) |
|
General |
|
|
Power requirements |
DC 12V |
|
Power consumption |
3.75W |
|
Operating temperature |
-5 to +45 °C (+22 to +113 °F) |
|
Storage temperature |
-20 to +60 °C (-4 to +140 °F) |
|
Operating humidity |
20~80%RH(Non-condensing) |
|
Storage humidity |
20~95%RH(Non-condensing) |
|
Lens Dimensions |
Ø30x31mm |
|
Dimensions(W x D x H mm) |
96.5X73.8X24mm |
|
Weight(Main Body) |
390g |
|
PC system requirements |
|
|
Operating system |
Windows 2000,XP,VISTA,Windows 7,Windows 8, MAC OS,Linux,Android,iphone OS |
|
Processor |
Intel Pentium III, 1GHz or Higher |
|
Memory |
256MB RAM Minimum |
|
Web browser |
Microsoft Internet Explorer Version 5.5 or Later Safari,Mozilla Firefox,Google Chrome and most other browsers |
