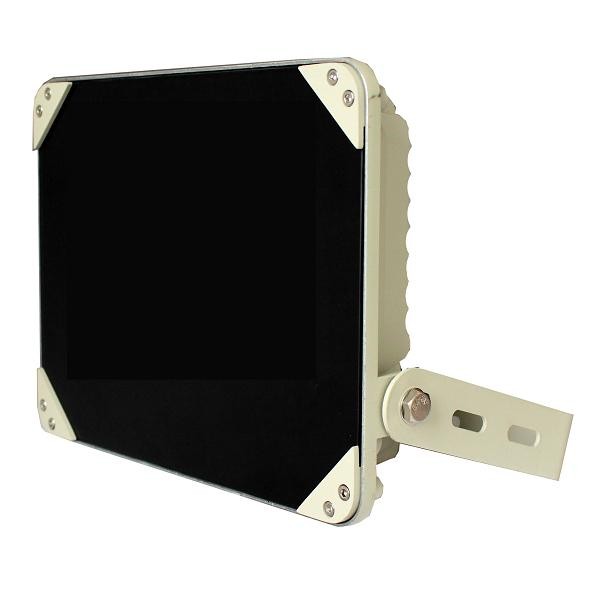

IR Illuminator 740nm/850nm/940nm 15 - 120 grader

IR Illuminator

740nm/850nm/940nm

15 - 120 grader

Deliver high power infrared light for CCTV & IP camera at night time and improve

performance of camera to get clear pictures.

Product Features

Precise secondary optical technology. The latest LED technology assures

outstanding performance of LED with excellent luminous efficiency and more u

niform illumination.Independent innovation of high efficiency power drive schemes.

Low failure rate of products is guaranteed because of professional in-house

optimized independent circuit technology widely used in our LED illuminators for

more than 5 years.

High thermal conductivity aluminum.Excellent thermal management not only reduces excess

heat and brightness decay of LED but also ensures efficient, reliable and continuous operation

of LED throughout its lifetime as 50,000 hours.Energy saving technology.All illuminators has energy saving circuit with low electrical power consumption. Thinner and lighter design.

Our patent owned housing is designed for simple installation and easy operation to

reduce construction difficulty.

Warranty period:  3 year warranty.

Basic Function

To improve performance of the weak light camera, thereby enhancing the

picture effects at night. Conventional night monitoring. The function of video analysis at night.

Reduce signal noise and other image distortion. Reduce the network bandwidth requirements.

Energy saving by power factor correction. Reduce the equipment cost.

Lower cost of installing and wiring.

Indoor and outdoor use.

Technical Specification

LED type: 24 pieces high power IR LED

Wavelength: 740nm/850nm/940nm

Beam angle: 15 to 120°

Beam distance: 340m to 65m

Bracket: wall mount bracket

Working voltage: 85-265V AC/12-24V DC/24V A

Cable: 1.3m(85-265V AC)/0.45m(12-24V DC/24V AC)

Power consumption: 48W

Day/night switch: automatic

Working temperatures: -30 to 50°C(-50 to 50°C with heater)

Protection level: IP66

Color: beige/black

Panel: tempered glass panel+IR passing plastic

Housing: aluminum die-casting housing

N.W: 2.2KG

G.W: 2.5KG

Dimension: 261*202*90mm

Packing dimension: 290*220*140mm

Model for Selection

Model Beam angle IR distance(850nm/940nm)

S-SE24-15-IR 15° 240m

S-SE24-30-IR 30° 180m

S-SE24-45-IR 45° 110m

S-SE24-60-IR 60° 85m

S-SE24-90-IR 90° 70m

S-SE24-120-IR 120° 60m

To achieve the distance needed, please pay attention to your camera specification

and lens before purchase. It is normal phenomenon that distance may vary due to

different cameras and lens.
