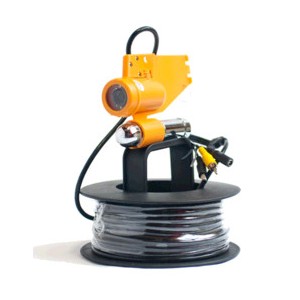

Night vision digital underwater camera 1/3" sony ccd 700tvl
20m underwater camera fish finder
BS-ST04A
Quick Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: OEM
Type: Analog Camera Style:
Box Camera Sensor: CCD, 1/3 inch CCD or CMOS
Technology: Infrared
Special Features:
Waterproof / Weatherproof
Certificater: CE.FCC,ROHS
View angle:: 92 degree
Cable customized: 20/30/50/100 meters, (up to 300m available)
Waterproof: ip66
Camera resolution: 700TVL
Camera led light: 12PCS white LEDS
Keyword:
underwater camera

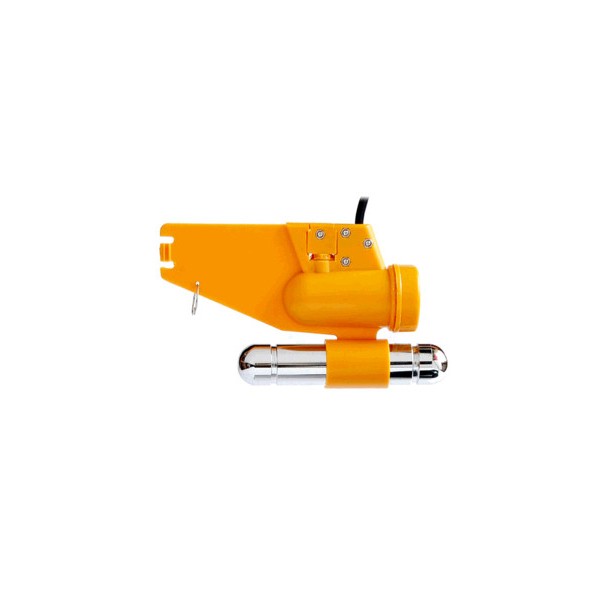

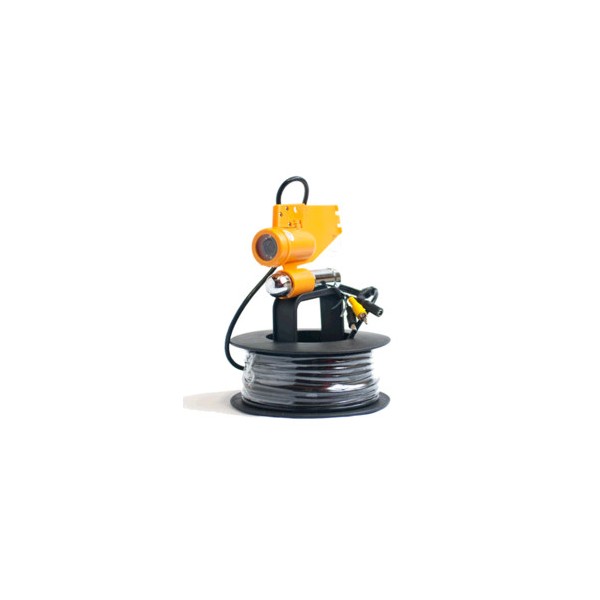

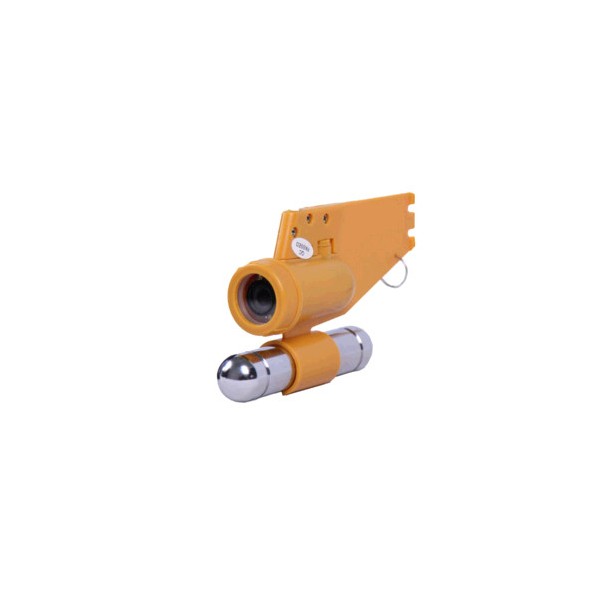

This is deep underwater camera system. It utilizes the latest image
compression technology and use high resolution image CCD with 700TVL,
low light performance. The shell of camera is made of professional stainless
steel material and passed the IP68 waterproof test . It is suitable for aquaculture,
deep-hole exploration, underwater operations, diving adventure, leisure fishing,
underwater viewing, swimming pools, and so on. Easy to carry.
Camera specification:
1. camera size: 185mm x 95mm
2.Camera case material: strong plastic
3. Camera glass material: sapphir glass
4. sensor size: 1/3 inch CCD or CMOS
5.Total Pixels: 700 TVL
6. view angle: 92 degree
7. camera led light:12PCS white LEDS8. Leds adjustable
9. Cable length: 20/30/50/100 meters, (up to 300m available)
10. camerawork current: 100MA
11. camera power supply:DC 12V
12.Work condition: underwater
Specifications:
|
Model |
BS-ST04A |
|
SYSTEM |
PAL/NTSC |
|
CHIP MODEL |
ICX227AK(PAL)ICX226AK(NTSC) ICX409AL ICX405AL |
|
EFFECTIVE PIXEL |
500 (H) × 582 (V)(PAL) 510 (H) × 492 (V)(NTSC) 752 (H) x 582 (V) 537 (H) x 597 (V) |
|
LENS VIEWING ANGLE |
(°) 92° |
|
LENS DIMENSION |
3.6MM |
|
MINIMAL ILLUMINATION |
2LUX 0.05LUX |
|
UNDERWATER EFFECTIVE RANGE: |
(WATER IS CLEAR) 1M |
|
POWER SUPPLY |
DC12V-15V |
|
POWER CONSUMPTION(MAX |
200 MA 300MA |
|
S/N RATIO |
≥48DB |
|
WORKING TEMPERATURE(°C) |
-10- +50°C |
|
STORAGE TEMPERATURE(°C |
-20 - +60°C |
|
OPERATION HUMIDITY |
15%~85%RH |
|
TV LINE |
420TVL |
|
Size |
403x315x181mm |
|
|
|
