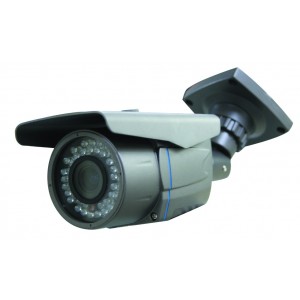

LIKT40SFP 1/3" SONY 1.3 Megapixel Sensor, 720P, Low...

Model                                     LIV40SFP

Image Sensor

1/3" SONY

Horizontal Resolution

1.3 Megapixel Sensor, 720P,

Low Illumination,

OSD, IR-CUT, 3D NR,

Digital Zoom

Pixels

1309(H) × 1049(V)

TV System

PAL/NTSC

IR Series Distance

40M

IR LED

Ø 5 X 42 PCS

Lens

2.8-12mm Manual Zoom Lens

(2M Pixels)

Sync System

Internal, Negative sync

Usable Illumination

0.01Lux /F1.2

S/N Ratio

≥50dB (AGC OFF)

Gamma Correction

0.45

Video Out

Composite Signal (1.0Vp-p, 75Ω)

Scanning System

2:1 interface

Electronic Shutter Time

Auto:PAL 1/50-1/100, 000Sec;

NTSC 1/60-1/100, 000Sec

Operation  Temperature

-10C~ +50C RH 95% Max

Storage  Temperature

-20C~ +60C RH 95% Max

White Balance

Auto

Power Source

DC12V 550mA

Dimension

220(W) x 80(H) x 80(D)mm

Package

59 x 35 x 49mm

Weight

1400g
