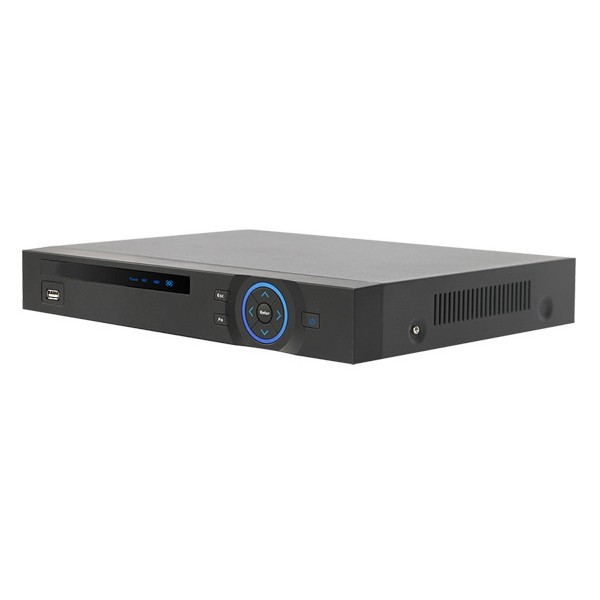

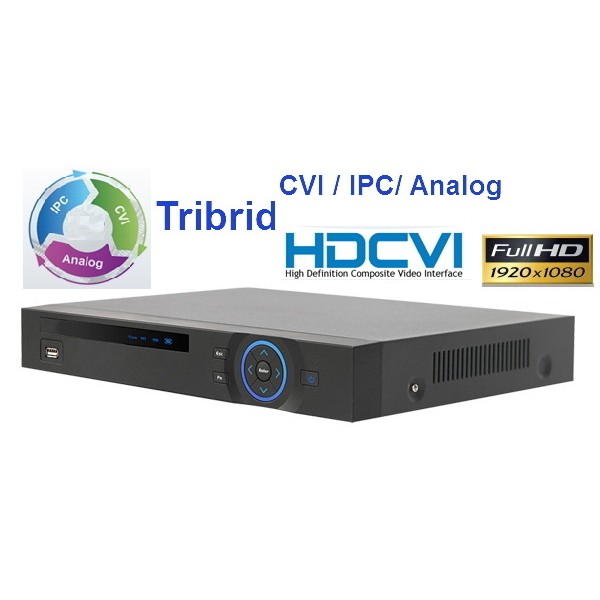

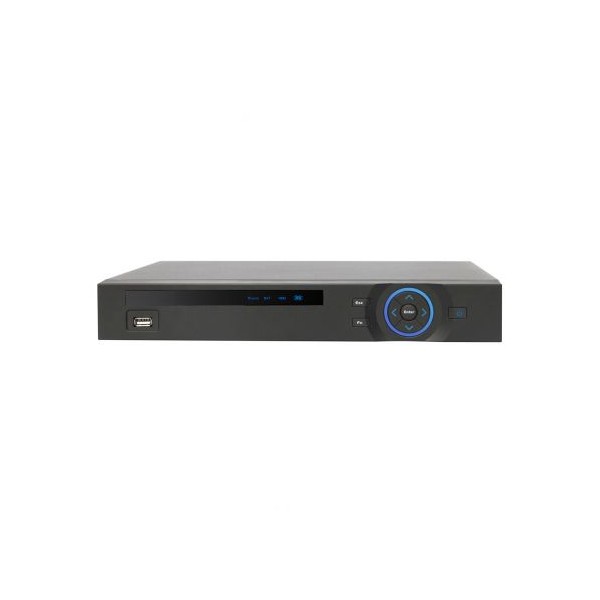

4 Channel 1080P Tribrid HDCVI CVR

Model No.

SCVR5104HG-S2

System

Main Processor

 H.264 dual-stream video compression

Operating System

Embedded LINUX

Video

Input

4 channel, BNC

Standard

HDCVI

1080P/720P HDCVI Camera

IP

1080P/720P/D1 Onvif IP Camera

Analog

NTSC(525Line, 60f/s), PAL(625Line, 50f/s)

Output

1 VGA, 1 HDMI

Audio

Input

1 Channel, RCA

Two-way Audio

Reuse audio input/output channel 1

Output

1 Channel, RCA

Alarm

Sensor Input

NO

Output

NO

Motion Detection

4 Channel

Trigger Events

Recording, PTZ, Tour, Alarm, Video Push, Email, Screen tips

Email Alarm

Send Pieces to The Designated E-mail

PTZ

Interface

RS485

Protocol

Pelco-D, Pelco-P,  Sony, Sharp, Panasonic,

Samsung and Other Protocols

Baud Rate

1200~115200

Address

0~255

Display

Interface

1 HDMI, 1 VGA

Resolution

1920×1080, 1280×1024, 1280×720, 1024×768, 800×600

Display Split

1/4

Privacy Masking

4 Rectangular Zones (Each camera)

OSD

Camera title, Time, Video loss, Alarm,

 Motion detection, Recording

Recording

Video Compression

H.264

Audio Compression

G711A、G711U、PCM

Resolution

1080P(1920*1080), 960P(1280*960), 720P(1280×720),

D1(P:704×576/N:704×480),
HD1(P:352×576/N:352×480), CIF(352×288/ 352×240),

QCIF(P:176×144/N:176×120)

Video Quality

Best/Fine/Normal

Record

Rate

Main

Stream

1080P(1~15fps)/ 720P/960H/D1 (1~25/30fps)

Extra

Stream

CIF/QCIF(1~25/30fps), D1(1~6/7fps)

Record Mode

ManualTimerMotion Detection

Playback & Backup

Sync Playback

1/4

Search Mode

ALL, Channel, Manual, Time, Date, Motion Detection

Playback Functions

Play, Pause, Stop, Rewind, Fast play, Slow play

Smart Phone Playback

Support iPhone, iPad, Android, Windows Phone

Backup Mode

USB Device/Network

Network

Ethernet

RJ-45 port(10/100M)

Network Functions

HTTP, IPv4,IPv6, TCP/IP, SMTP, DHCP, DNS,

PPPOE, DDNS,NTP,DST, P2P

DDNS

Quick DDNS(free of charge), 3322, Dyndns

Web Browser

IE6-11, Google Chrom , Firefox

CMS Software

Support Windows XP /Windows Vista/Windows 7/Windows 8

Extra Stream

D1/CIF/QCIF(1~25fps)

Smart Phone

iPhone, ipad,  Android

Storage

Interface HDD

1 SATA port, up to 4TB

General

Power Supply

 DC 12V

Working Environment

-10C~55C/10%~90%

Dimension

CVR：258*236*42mm, Box Size:300*115*290mm,

Carton Size:630*320*620mm (10pcs/CTN)

Weight

CVR: 1.45kg (Without HDD) ,  Carton Weight:  16KG (10pcs/CTN)
