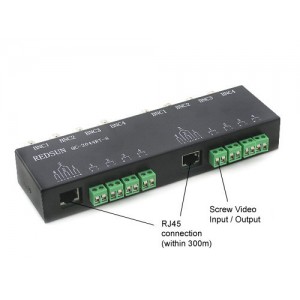

Passiv Balun LLT-308

Description:

Transmit Video Signal via UTP Lan Cable
Input of 8ch box : BNC-video
Output 1 of 8ch box - Two RJ45, each for 4 channels (Pin 1-2 ch1, Pin 4-5 ch2,                          pin 3-6 ch3, pin 7-8 ch4)
Output 2 of 8ch box - Eight Screw output for 8 channels
Input of Transceiver - Screw (UTP cable)
Output of Transeiver - BNC
Passive design (no power required)
Using Standard LAN cable, patching.
This system does not support 12V power transmission
Maximum 300m color video working distance (much better than coaxial cable 100m)
Material: Metal
