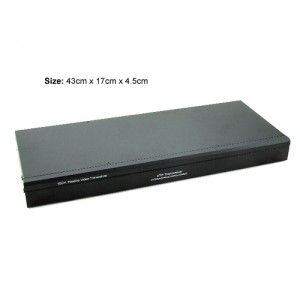

Passiv Balun LLT-316

Descriptions:

Transmit Video Signal via UTP Lan Cable

Input of 16ch box : BNC-video

Output 1 of 16ch box - Four RJ45, each for 4 channels (Pin 1-2 ch1, Pin 4-5 ch2,                       pin 3-6 ch3, pin 7-8 ch4)

Output 2 of 16ch box - Sixteen pair of Screw output for 16 channels

Input of Transceiver - Screw (UTP cable)

Output of Transeiver - BNC

Passive design (no power required)

Using Standard LAN cable, patching.

This system does not support 12V power transmission

Maximum 300m color video working distance (much better than coaxial cable 100m)

Material: Metal
