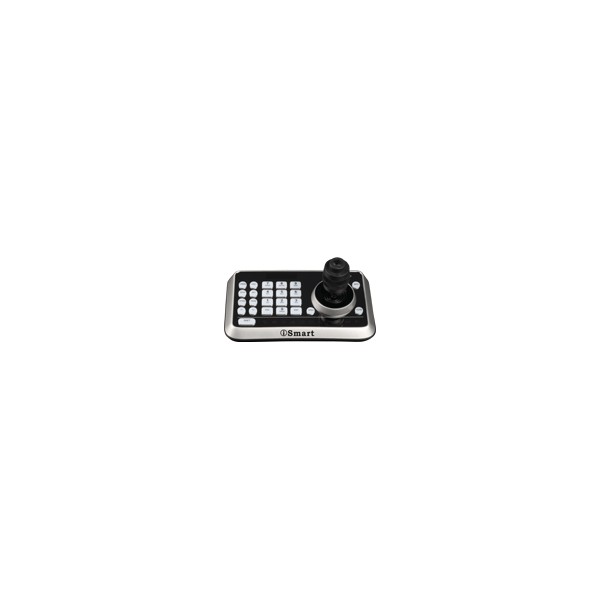

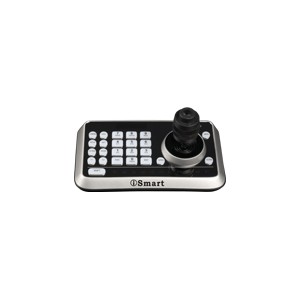

Mini Keyboard Controllers for PTZ Cameras
CKB-02
The mini keyboard controller is a full-function system keyboard. With features of ergonomic design, multi-function, high reliability and easy operation, it is a perfect controller for rugged PTZ cameras, video conference cameras, surveillance cameras and so on.
Features:
4D joystick for pan/tilt/zoom/focus control, ergonomic design and excellent finishing;
High brightness OLED display;
Auto backlight keys;Shortcut keys customization;
Batch program cameras in the systems;
Multi-level protection from illegal operation or setting;
Multi-baud rate and protocols;256 address;
Compact design with portable features;
|
Comm. Interface |
RS485, RS232 |
|
Protocol |
Pelco-D, Pelco-P, VISCA |
|
Baud Rate |
2400bps, 4800bps, 9600bps, 19200bps, 38400bps |
|
Address |
0~255 |
|
Joystick |
4-axis (Left/Right, Up /Down, Zoom In/Zoom Out, Focus Near / Focus Far) |
|
Display |
OLED |
|
Power |
DC12V |
|
Power Consumption |
<2W |
|
Working Temperature |
0°C ~ 40°C |
|
Storage Temperature |
-20°C ~ +50°C |
|
Relative Humidity |
<90%(non-condensation) |
|
Dimensions |
200mm(L)*120mm(W)*103mm(H) |
|
Net Weight |
0.5kg |
