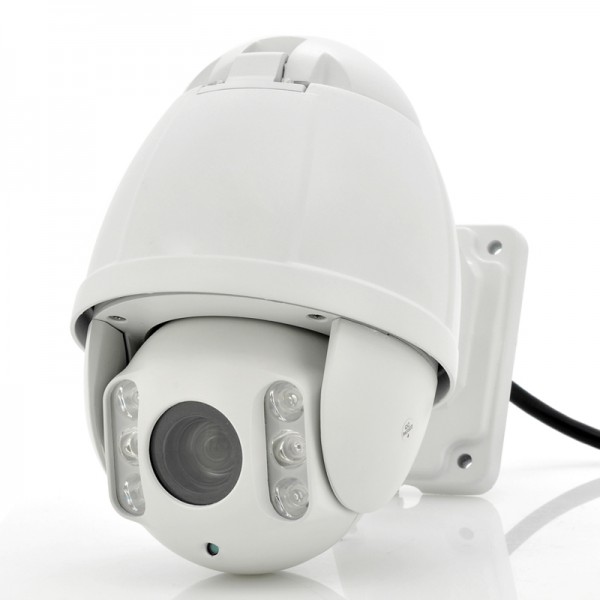

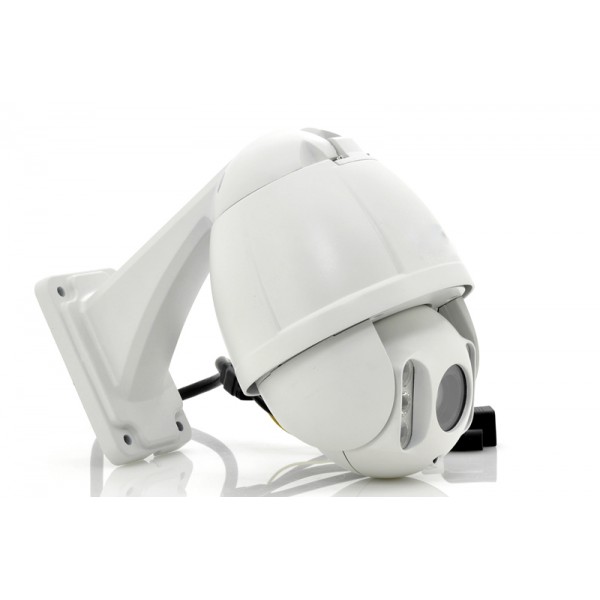

1.3 MP HD-IP IR PTZ Speed Dome Camera 10X zoom

Camera　

Sensor

1/3" progressive scan CMOS

Effective pixels

960P(960X1920)

Total pixels

1.3 Megapixels

Output Pixel

1920*960@25fps

1280*720@60fps

1280*720@50fps

Lens

10X optical zoom f=5mm(W) ~ 50mm(T)  ±5%

Iris

F1.6 ~F2.8

View of Angle

H：51.8°（W）～5.86°（T）

 V：39.1°（W）～4.4°（T）

Min. illumination

Color: 0.01 Lux   B/W: 0 Lux

D/N

IR-CUT

BLC

Auto

WB

Auto

S/N Ratio

>50dB

Dome

Communications Protocol

TCP/IP, HTTP, FTP, RTSP, UPnP,

DNS, NTP, RTP, UDP, IGMP

Software Control

IE, CMS, Management Platform

Mobile View(optional)

Support Windows, Symbian,

 iPhone platform smartphone

Preset Points

220

Pattern Scan

4 groups

Guard Tours

4 groups

Guard Points

Max.16 points, dwell time user selectable

Operating temperature

Indoor: 0°~ +40°

 Outdoor: -20°~ +60°

Operation menu

OSD menu in English

Pan and Tilt position display

Support

Auto Control IR LED

PWM

Support ambient light detection

IR illumination on 1-15 grades selectable;

LEDs

6pcs

IR distance

up to 50 meters

Support ambient light detection

IR illumination on 1-9 grades selectable;

Humidity

≤95% Non Condensing

Power

DC12V ≤3A

Consumption

< 25W

Lightning Protection

Transient voltage 6000V

Communication mode

RS485 (+/-)

Connection

Coaxial Cable

Size/Weight

2.7KG（N.W）,.3.4KG（G.W）

Related validation

IP66,CE,FCC,RoHs
