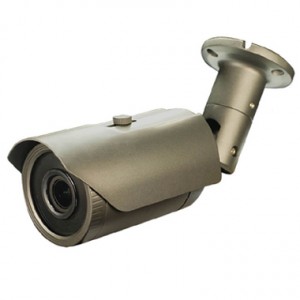

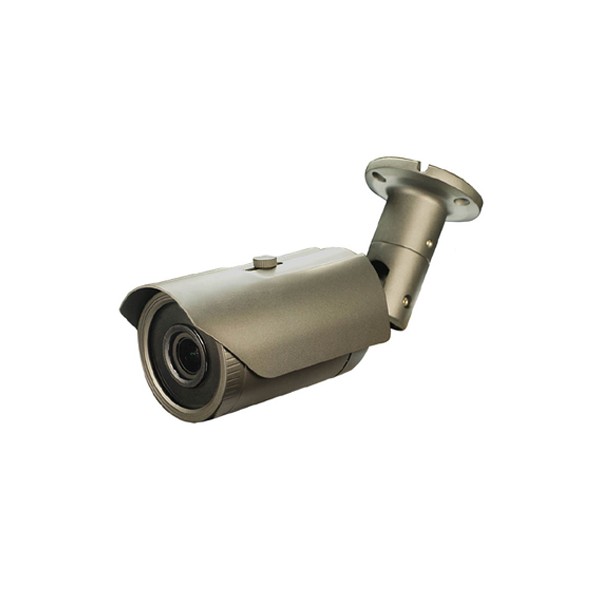

1.3MP pixels Resolution Starlight LOW LUX Day and Night Color...

Model No.

EST-IPH57113-L

Camera Type

IP Camera

System

Embedded RTOS design

Camera

Effective Pixels

1.3 Megapixels

Main stream:1280*960;1280*720

Sub stream:704*576

Frames Rates

PAL:25fps(1280*960)/(1280*720)

NTSC:30fps(1280*960)/(1280*720)

Image Sensor

Sony IMX 225L

1.3 megapixel resolution (1280H*960V)

DSP

Dual core   32-bit DSP

(Hi3518C)

Min. Illumination

Color   0.01Lux@F1.2

B/W   0.001 Lux@F1.2

Adjust Parameters

DWDR,BLC,DNR,AE,AGC,D&N,Mirror,Flip,etc.

Video

Compression

H.264 Main profile

Stream

support dual stream,AVI format

Bit Rate

support 0.1M ~8Mpbs bit rate adjustable

Frame Rates

support 1~30fps adjust

Audio

Input and output

1ch   input( micphone),

1ch output( Speaker&micphone) Optional

Compression

G.711 compression,support two-way audio intercom,

support audio and video synchronized output

Alarm

Types

Motion Detection, Video Blind , Video Loss

Network

WEB Browser

Support   WEB   remote   config( IE, Safari,

 Google Chrome, Firefox etc.)

Smart Phone

mobile remote Monitoring (iPhone,Android,

Windows Mobile,BlackBerry,Symbian)

CMS Software

Uniform CMS Software

(multiple devices management system)

Cloud P2P

www.p2pipc.net,

MYEYE platform and other program,Offer SDK

Network

1* RJ45,10/100M,

Support RTSP/FTP/PPPOE/DHCP/DDNS/

NTP/UPnP/SMTP

ONVIF

Support (ONVIF 2.0)

POE

Support(optional)

WIFI

N/A

General

Language

20 kinds of languages such as English, Finnish, French,

German, Greek,Italian, Japanese, Polish, Portuguese, Russian,

Spanish, Thai, S-Chinese, T-Chinese and Turkish

IR Cut Filter

Set of double light switch IR-CUT filter

Lens Mount

Varifocal Lens 2.8 -12mm(2MP)

Infrared Luminary

None

Waterproof Criterion

IP 66

I/O Connector

1*DC Connector ,1* RJ45(10/100M Network),

1*BNC connector( CVBS,Option )

Supplied Voltage

DC12V/PoE(802.3af/820.3at)

Power Consumption

Less than 200mA

Working Enviroment

-10°C~+60°C, 10%~90%

Dimensions

200*100*85mm

Weight

1.4 kg
