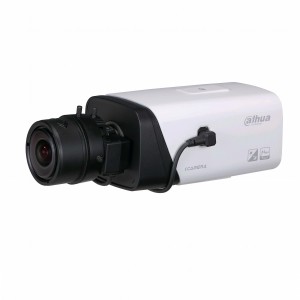

dahua 2MP Starlight Ultra-smart Network Camera POE DH-IPC-HF8281E

Model

DH-IPC-HF8281EP

Camera

Image Sensor

1/1.9” 2Megapixel progressive scan Exmor CMOS

Effective Pixels

1920(H)x1080(V)

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3~1/10000s

Min. Illumination

0. 002Lux/F1.2 (Color), 0.0002Lux/F1.2(B/W)

S/N Ratio

More than 50dB

Video Output

1 channel BNC（1.0Vp-p，75Ω）

Camera Features

Max. IR LEDs Length

N/A

Day/Night

Auto(ICR)/Color/B/W

Backlight Compensation

BLC / HLC / WDR(120dB)

White Balance

Auto/Manual

Gain Control

Auto/Manual

Noise Reduction

3D

Privacy Masking

Up to 4 areas

EIS

Support

Ultra Defog

Support

Smart focus

ABF

Lens

Mount Type

C/CS

Video

Compression

H.264/MJPEG

Resolution

1080P(1920×1080)/720P(1280×720)/

D1(704×576)/CIF(352×
288)

Frame Rate

Main Stream

1080P/720P(1 ~ 50/60fps)

Sub Stream

D1/CIF(1 ~ 50/60fps)

Third Stream

1080P/720P(1 ~ 50/60fps)

Bit Rate

H.264: 32K ~ 8192Kbps

ROI

Up to 4 areas

Audio

Compression

G.711a / G.711u

Interface

1/1 channel In/Out

Smart Function

Smart detection

Tripwire

Intrusion

Scene change

Missing/Abandoned

Audio detect

Face detect

Intelligent function

People counting

Heat map

Network

Ethernet

RJ-45 (10/100Base-T)

Wi-Fi

N/A

Protocol

IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP,

IGMP, SNMP, RTSP, RTP, SMTP,NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour

Compatibility

ONVIF ,PSIA,CGI

Max. User Access

20 users

Smart Phone

iPhone, iPad, Android, Windows Phone

Auxiliary Interface

Memory Slot

Micro SD, Max 64GB

RS485

1

Alarm

2/1 channel In/Out

General

Power Supply

DC12V/AC24V, PoE (802.3af)

Power Consumption

Max 10W (ABF&ICR on)

Working Environment

-30°C~+60°C, Less than 95% RH

Ingress Protection

N/A

Dimensions

74.1mm×65.5mm×135.4mm

Weight

0.3Kg
