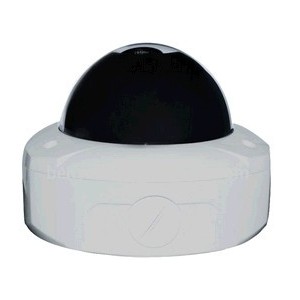

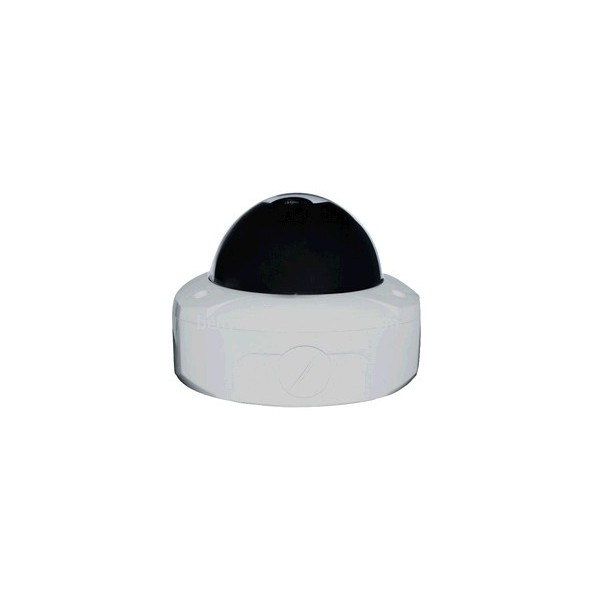

1.3MP pixels Resolution Starlight LOW LUX Day and Night Color...

Model No.

EST-IPH32613-L

Camera Type

IP Camera

System

Embedded RTOS design

Camera

Effective Pixels

1.3 Megapixels

Main stream:1280*960;1280*720

Sub stream:704*576

Frames Rates

PAL:25fps(1280*960)/(1280*720)

NTSC:30fps(1280*960)/(1280*720)

Image Sensor

Sony IMX 225L

1.3 megapixel resolution (1280H*960V)

DSP

Dual core   32-bit DSP

(Hi3518C)

Min. Illumination

Color   0.01Lux@F1.2

B/W   0.001 Lux@F1.2

Adjust Parameters

DWDR,BLC,DNR,AE,AGC,D&N,Mirror,Flip,etc.

Video

Compression

H.264 Main profile

Stream

support dual stream,AVI format

Bit Rate

support 0.1M ~8Mpbs bit rate adjustable

Frame Rates

support 1~30fps adjust

Audio

Input and output

1ch   input( micphone),1ch output

t( Speaker&micphone) Optional

Compression

G.711 compression,support two-way audio intercom,

support audio and video synchronized output

Alarm

Types

Motion Detection, Video Blind , Video Loss

Network

WEB Browser

Support WEB remote config

( IE, Safari, Google Chrome, Firefox etc.)

Smart Phone

mobile remote Monitoring

(iPhone,Android,Windows Mobile,BlackBerry,Symbian)

CMS Software

Uniform CMS Software(multiple devices management system)

Cloud P2P

www.p2pipc.net,

MYEYE platform and other program,Offer SDK

Network

1* RJ45,10/100M,Support RTSP/FTP/PPPOE/

DHCP/DDNS/NTP/UPnP/SMTP

ONVIF

Support (ONVIF 2.0)

POE

Support(optional)

WIFI

N/A

General

Language

20 kinds of languages such as English, Finnish, French,

German, Greek,Italian, Japanese, Polish, Portuguese, Russian,

Spanish, Thai,   S-Chinese, T-Chinese and Turkish

IR Cut Filter

Set of double light switch IR-CUT filter

Lens Mount

Varifocal Lens 2.8 -12mm(2MP)

Infrared Luminary

None

Waterproof Criterion

IP 65

I/O Connector

1*DC Connector ,1* RJ45(10/100M Network)

1*BNC connector( CVBS,Option )

Supplied Voltage

DC12V/PoE(802.3af/820.3at)

Power Consumption

Less than 200mA

Working Enviroment

-10°C~+60°C

Dimensions

80x 90 x160mm

Weight

1.3 kg
