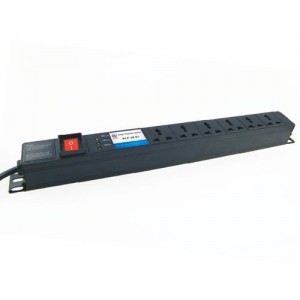

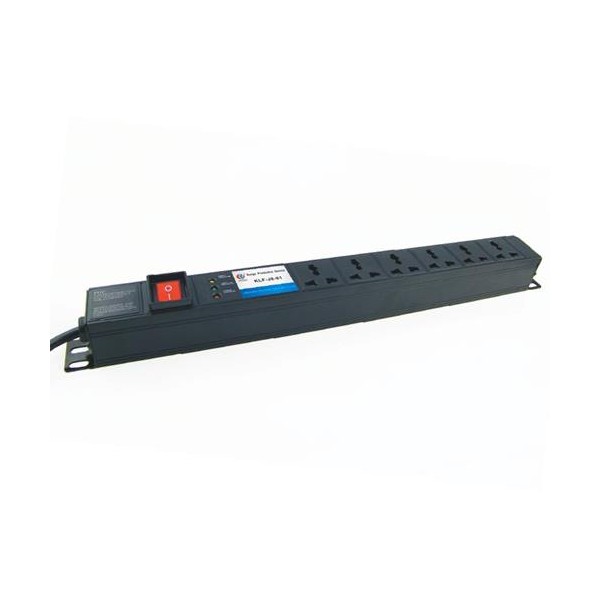

Power Surge 6 Way socket

Power Surge 6 Way socket

KLF-B6-01

1) Product Description:

This product is suitable for lightning protection zone: lightning surge protection of LPZ2 area at

the junction with the LPZ3 (D level) power lines.

It has six international standard jack socket and is designed as modular, is easy to install;

The material of its shell use imported fire-retardant materials, its set of components plug bush

is phosphor bronze, and the products meet international standards and national standards.

With advantage of low residual voltage, fast response and long life, built-in over-current, overload

protection.

It can be inserted 16 kinds of different plugs, full use of every outlet.

It is mainly applied to the lightning protection (over voltage) protection of low-voltage single-

phase AC power supply system electrical and electronic equipment. Such as

telecommunications equipment, computer and network equipment, medical instruments,

precision electronic equipment, household appliances and so on.

2) Technology Parameters:

3) Product Installation:

1. This SPD is applied to the lightning protection power distribution system for the fourth-class,

it is used in the front of equipment, and its usage is the same as general extension wire.

2. Apply to the lightning protection of electrical equipment, such as: computer centers, control

rooms, information equipment, office electrical equipment, household electrical equipment, high

precision equipment.

3. It is suitable for indoor operation.

4. All wiring must be solid and connect by electric.

5. Lightning proof grounding should be consistent with lightning protection regulatory

requirements; grounding wire should be as thick and short as possible, resistance should be

less than 4O.
