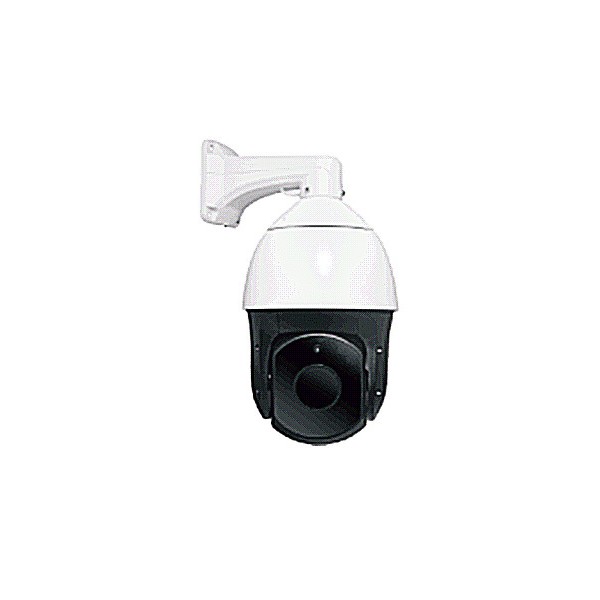

2.0MP 1/3” CMOS, 18X optical zoom Outdoor IP HD IR High Speed...

2.0MP 1/3” CMOS, 18X optical zoom

Outdoor IP HD IR High Speed

Dome Camera PTZ Camera

Application:

It can be widely used in wide range environments which required monitoring,

e.g. river, forest, highroad, railway, airport, port, oil field, sentry, piazza, park,

scenic zone, street, station, venue, parcel surrounding, and etc.

Product Introduction:

1. IR Function

1)       10PCS high-power infrared light, turn divided into two groups ,

2)       no flashlight effect ,

3)       IR distance 100-120m.

2) Adopt the function of matching the IR to optical zoom of the module,

3) make the image more clear.

4) Adopt constant current drive for the IR light, extend the lift of the IR light.

2. System Function

1) Adopt high-performance 1/2.7" 2.0M Pixel CMOS OV2715 sensor,

2.0MegaPixels,resolution achieve 1920x1080.

2)Precision motor-driven,keen responsive,smoothly operation,the precision

deviation less than 0.1 degree, the image does not have any vibration under any speed.

3) Support Hikvision 3D intelligent positioning function, can realize tracking

and zooming out function when work with DVR.

4) Support data not lost when power off.

5) Support graphic menu, operation prompt facility, PTZ position display.

6) Adopt advanced Heating equipment.

7) Support Protocol automatically diagnosis(Pelco-D, Pelco-P, Hikvision, Dahua),

Baud rate automatically adjust 2400bps,4800bps,9600bps.

8) Support lightning protection, anti-surge, anti-surge function, IP66.

3. Zoom module function

1) 18X optical zoom, out-band auto focus performance,F1.6--F2.8 Iris.

2) Support auto iris,electronic shutter,auto white balance and black compensation.

3) Support low illumination,0.05Lux/F1.4(color),0.01Lux/F1.4(white),0 Lux with IR.

4) Support 3D digital noise reduction,digital WDR function.

5) Effective pixels 2.0 million pixels (1080P).

4. IP Function

1) Adopt high-performance Hisilicon platform, stable and reliable performance.

2) Via IE browser and client software to view the image and control it.

3) Support dual-stream, H.264/MJPEG, multi-level video quality configuration,

and real-time vide output 1080P.

4) Support self-adaptive 10/100m and multi-protocols:

HTTP/HTTPS/RTSP/FTP/PPPoE/TCPIP/DHCP/DDNS/NTP/UPnP/FTP

5. PTZ Control

1)  360°endless pan range and 0°- 90°tilt range, support auto-flip,

non-surveillance blind area

2)  Pan control speed 0.6°~220°/s, tilt control speed 0.8~75°/s

3)  Support 220 preset, 8 patrols, each patrol can contain up to 32 presets

4)  4 patterns, can totally record up to 10 minus.
