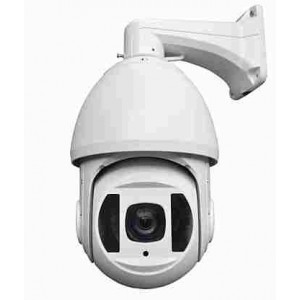

2.0 MP IR Intelligent High Speed Dome
AHD Camera 33X Zoom
CSJ-AH6RK3-200N33
Function characteristic:
1.Adopt high performance 1/2.8” CMOS;
2.Adopt high performance imported dot matrix large glass lamps and
imported high-speed glass lamplight, to ensure the IR distance 150m;
product life can reach 30,000 hours;
3.Intelligent infrared control technology can automatically control the infrared
light according to theenvironment. Under the premise of ensuring monitoring results,
it can effectively enhance the infraredlamp’s life and ensure the product stability;
4.Constant current circuit design, to ensure stable operation of the infrared light.
It won’t reduce theinfrared lamp’s life which caused by the changing of the power supply;
5.Efficient cooling structure, using physical means heat, which can effectively reduce the
temperature of the inside dome camera, to prevent the inner to be fogging, and to ensure
the machine’s stability.
|
Model No. |
CSJ-AH6RK3-200N33 |
|
Image sensor |
1/2.8" CMOS |
|
Signal model |
PAL/NTSC |
|
Horizontal resolution |
1080P |
|
Effective pixel |
1920(H)ⅹ1080(V) |
|
Minimum illumination |
Color:0.01Lux B/W:0.001Lux |
|
S/N radio |
>50dB |
|
Backlight compensation |
On/Off |
|
White balance |
Auto |
|
Electronic shutter |
PAL:1/50~1/10000s NTSC:1/60~1/12000s |
|
Focus length |
4.6~151.8mm |
|
Optical focus |
33x |
|
Focus system |
Auto/Manual/Auto zoom |
|
Presets |
255pcs |
|
Patrol track |
4 groups,each group record 3min. |
|
Cruise track |
4 groups, each group for 16 presets |
|
IR distance |
150M |
|
Horizontal range |
360°continuous rotation |
|
Vertical range |
-90°-0° |
