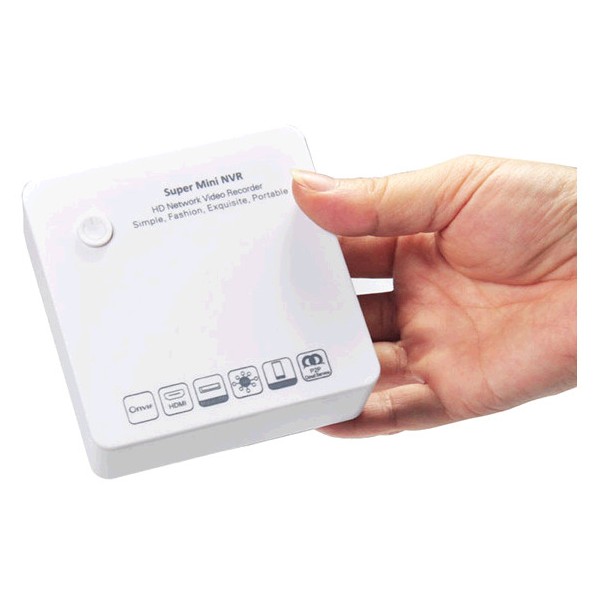

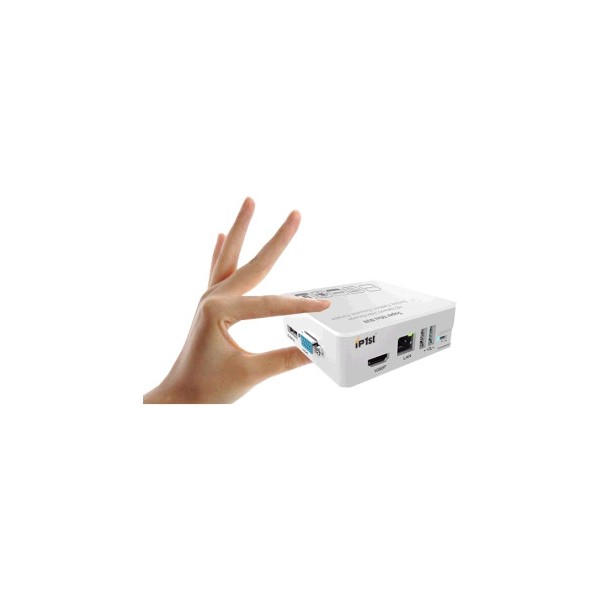

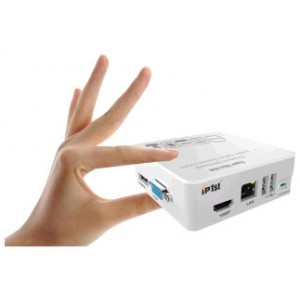

iAtom 4CH Mini Portable Standalone NVR Support ONVIF
Key Features:
1. Preview channel can be switched to other channel randomly without changing the MAC which
is convenient for the project construction;
2. The dendritic menu can be moved. Man- machine communication is more direct and the
settings of parameters are more easy and convenient;
3. The mouse roller can realize 15X digital zooming which the enlarged image can be dragged
and moved randomly under preview and playback modes;
4. Immediate snapshot and immediate view; the picture will be stored in an independent area in
the HDD;
5. The recording playback is shown by time bar and different color represents different recording
type. It is very fast and easy to find check the recording;
6. Recording backup can be accurate
to second. Any time period of backup is available;
7. The recording files in the USB disk can play directly in the playback interface while the
snapshot pictures can be viewed directly;
8. With 3G, WIFI wireless connection functions;
9. Standard resolution which can be adjusted according to the display device in order to get the
best image quality;
10. Adopt HDD sequence writing method and the data is written from 0 track which increase
2.5X lifetime of the HDD.
|
Model Number |
iAtom |
|
|
Operating System |
Embedded LINUX operating system |
|
|
Image Code Control |
Image code quality adjustable, variable bitstream and constant bitstream optional |
|
|
Dual Stream |
Each channel can set main stream and sub stream |
|
|
Video Standard |
1080P(1920×1080)30fps/960P/(1280×960)/ 720P (1280×720)30fps |
|
|
Monitoring Image Quality |
1080P(1920×1080) / 960P/(1280×960)/ 720P (1280×720) |
|
|
Image Motion Detection |
Each screen can set mutiple detection areas and set 6- level sensitivity(IPC Support) |
|
|
Recording Playback Quality |
4ch playback in 4ch 720/960P mode; 1ch 1080P playback in 1/4ch 1080P mode |
|
|
Region Cover |
Every channel can set 4 cover regions(IPC Support) |
|
|
Recording Mode |
Support manual , auto, dynamic detection, alarm trigger record mode (Partly needs IPC Support) |
|
|
Backup Way |
Support U disk, USB mobile HDD, USB DVD-RW, network storage and backup |
|
|
Operation Way |
Mouse |
|
|
Local Login |
User name and password |
|
|
Recording Storage |
Local HDD, network |
|
|

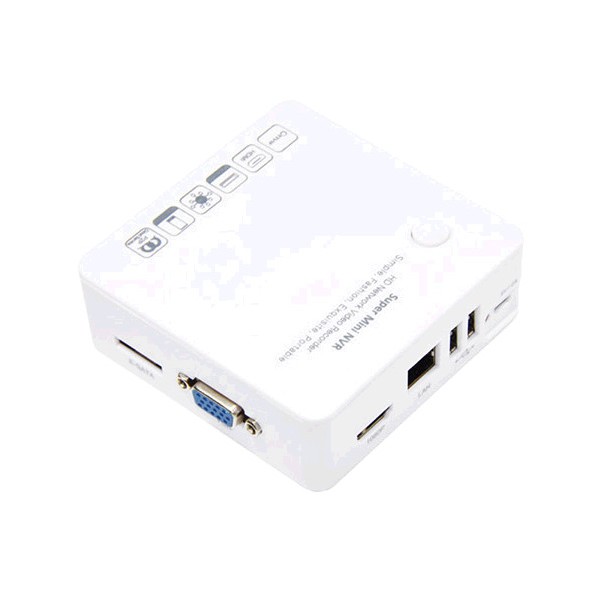

External Ports |
Video Input |
1) 4×(1280*720)+sub[960*576]+4Ref.+4Play 2) Support 4ch 1MP IP camera |
|
2 ) 4×(1280*960)+sub[960*576]+1Ref.+4Play Support 4ch 1.3MP IP camera |
||
|
3 ) 4×(1920*1080)+sub[960*576]+4Ref.+1Play Support 4ch 2MP IP camera |
||
|
4 ) 1×(1920*1080)+sub[960*576]+4Ref.+1Play Support 1ch 2MP IP camera |
||
|
5 ) 4×(720*576)+sub[352*288]+4Ref.+4Play Support 4ch 0.4MP IP camera |
||
|
Audio Input |
4ch network audio input |
|
|
Video Output |
1ch VGA+1ch HDMI |
|
|
Network Port |
1 RJ45,10M/100M self-adaptive LAN port |
|
|
USB Port |
2 USB 2.0 ports |
|
|
Wireless Port |
3G,WIFI |
|
|
HDD |
Mobile HDD/E-SATA/USB Disk |
|
|
Mobile Surveillance |
Support( iPhone, Windows Mobile, BlackBerry, Symbian, Android) smart phone |
|
