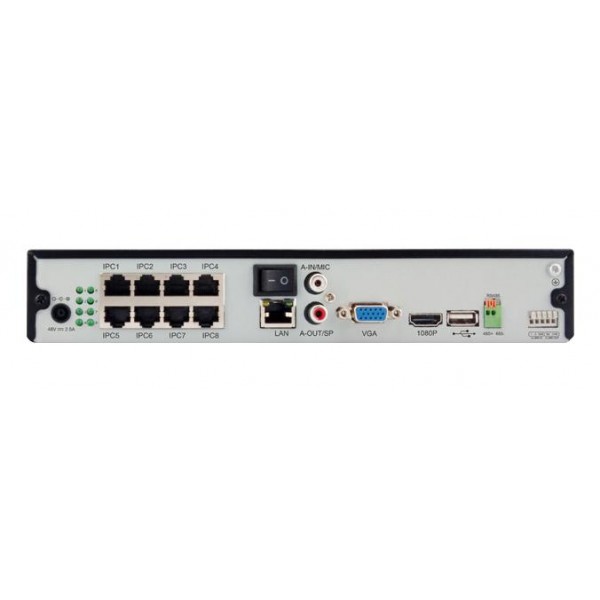

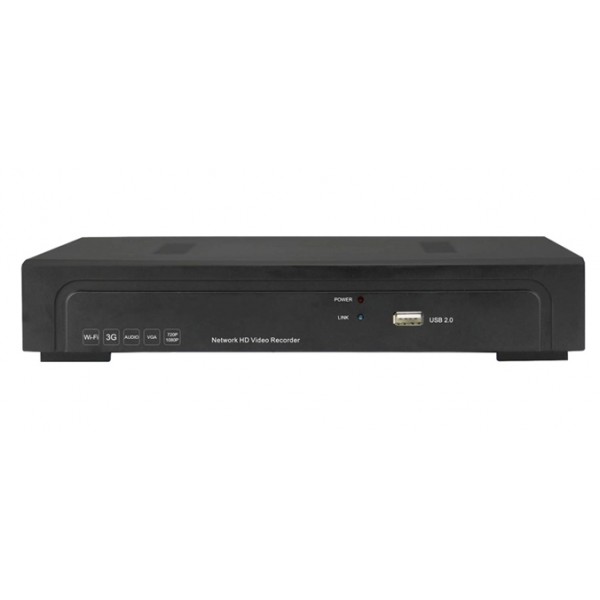

8 CHANNEL 1080P POE Network Video Recorder

Model Number

VG-MD-8108-POE-1

Operating System

Embedded LINUX operating system

Image Code Control

Image code quality adjustable, variable bitstream

and constant bitstream optional

Dual Stream

Each channel can set main stream and sub stream

Video Standard

1080P(1920×1080)30fps/960P/(1280×960)/

720P(1280×720)30fps

Monitoring Image Quality

1080P(1920×1080) / 960P/(1280×960)/720P(1280×720)

Image Motion Detection

Each screen can set mutiple detection areas

 and set 6-level sensitivity（IPC Support）

Recording Playbac Quality

4ch playback in 4ch 720/960P mode,

1ch 1080P playback in 4ch 1080P model

Region Cover

Every channel can set 4 cover regions（IPC Support）

Recording Mode

Support manual , auto, dynamic detection,

alarm trigger record mode(Partly needs IPC Support)

Backup Way

Support U disk, USB mobile HDD, USB DVD-RW,

network storage and backup

Operation Way

Mouse

Local Login

User name and password

Recording Storage

Local HDD, network

Video Input

8Ch 1080P IP camera or 8CH

 960P ip camera or 8 CH 720P IP camera

Audio Input

8 ch network audio input

Video Output

1ch VGA+1ch HDMI

Audio Output

1ch RCA auxiliary output

Network Port

5 RJ45, 10M/100M LAN port, Data transferring and power

supplying all by one network cable

USB Port

3 USB 2.0 ports

Wireless Port

3G,WIFI

HDD

1 SATA HDD Port,Each port supports MAX 4TB HDD

POE

8 pcs 10/100 Mbps RJ45 ports

IEEE802.3af protocol

Input Power Consumption 120W

Mobile Surveillance

Support( iPhone, Windows Mobile, BlackBerry,

Symbian, Android) smart phone

Power Supply

DC48V 2.5A

Power Consumption

≤115W(without HDD)

Working Temperature

-10C～＋55C

Working Humidity

10%-90%

Dimension

Equipment:260mm×220mm×43mm,

Packing:355mm×255mm×88.5mm

Weight(without HDD)

N.W.:1.7Kg,With packing:2.6Kg

Outside Carton

10 pcs/carton. 525mm×455mm×365mm, Weight:27 Kg

Installation Way

Desktop Installation
