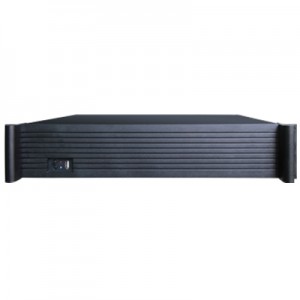

Network P2P 36CH ONVIF NVR 4K

Model Number

 DJ-2036X H.265 NVR

 Operating System

 Embedded LINUX operating system

 Image Code Control

 Image code quality adjustable, variable

 bitstream and constant bitstream optional

 Dual Stream

 Each channel can set main stream

 and sub stream

 Video Standard

8MP / 3MP / 1080P/ 960P/

 720P@30fps

 Monitoring Image Quality

8MP(3840*2160) / 3MP(2048*1536) /

 1080P / 960P / 720P

 Image Motion Detection

 Each screen can set multiple detection areas

and

 set 6-level sensitivity

 Recording Playback Quality

1CH/4CH/9CH/16CH playback simultaneously

 Region Cover

 Every channel can set 4 cover regions(IPC Support)

 Recording Mode

 Support manual , auto, dynamic detection,

 alarm trigger record mode

(Partly needs IPC Support)

 Backup Way

 Support U disk, USB mobile HDD,

USB DVD-RW, network storage and backup

(Partly needs IPC Support)

 Recording Storage

 Local HDD, network

 External Ports

 Video Input

A.36CH 4K 8MP(3840*2160)

B. 36CH 3MP(2048*1536)

C. 36CH 2MP(1920*1080)

 Audio Input

 36CH network audio input

 Video Output

 1ch VGA+1ch HDMI

 Audio Output

 1ch RCA output

 Network Port

 1 RJ45,10M/100M/1000M self-adaptive LAN port

 RS485 Port

 Full duplex standard 485 port

 USB Port

 1 USB 3.0 port, 2 USB 2.0 ports

 Alarm Input

 4ch

 Alarm Output

 1ch

 Wireless Port

 WIFI

 HDD

 HDD Port

 4 SATA HDD port + 1 E-SATA HDD port

 MAX Capacity

 Each port supports MAX 4TB HDD

 Mobile Surveillance

 Support( iPhone, Windows Mobile,

BlackBerry,Symbian,

Android) smart phone

 Power Supply

 12V6A

 Power Consumption

 ≤25W(without HDD)

 Working Temperature

 -10~+55 C

 Working Humidity

 10%-90%

 Dimension

 Equipment: 440mm*360mm*70mm,

Packing: 460mm*135mm*560mm

 Weight(without HDD)

 N.W.:5.7Kg; With packing:6.9Kg

 Outside Carton

 4 pcs/carton. 480mm*560mm*575mm;

 Weight:30 Kg

 Installation Way

 Desktop Installation
