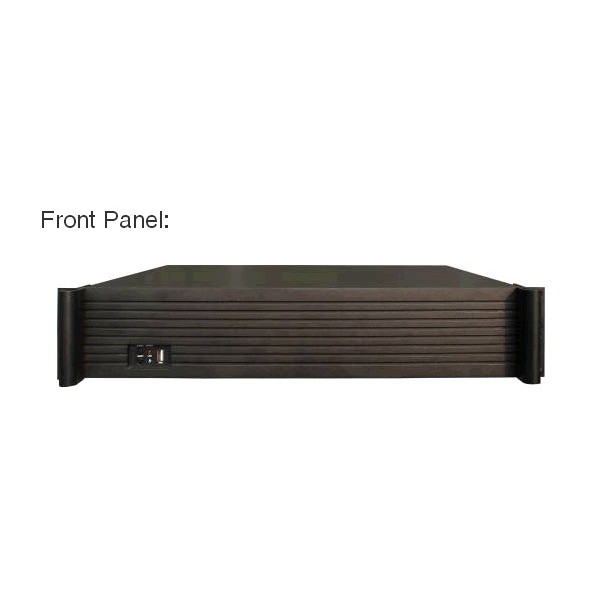

9HDD 2U 64CH Network Video Recorder H.265

29 andre varer i samme kategori:

9HDD 2U 64CH Network Video Recorder H.265

Features

1. Preview channel can be switched to other channel randomly without changing the MAC which

is convenient for the project construction;

2. The dendritic menu can be moved. Man-machine communication is more direct and the

settings of parameters are more easy and convenient;

3. The mouse roller can realize 15X digital zooming which the enlarged image can be dragged

and moved randomly under preview and playback modes;

4. Immediate snapshot and immediate view; the picture will be stored in an independent area in

the HDD;

5. The recording playback is shown by time bar and different color represents different recording

type. It is very fast and easy to find check the recording;

6. Recording backup can be accurate to second. Any time period of backup is available;

7. The recording files in the USB disk can play directly in the playback interface while the

snapshot pictures can be viewed directly;

8. With 3G, WIFI wireless connection functions;

9. Standard resolution which can be adjusted according to the display device in order to get the

best image quality;

10. Adopt HDD sequence writing method and the data is written from 0 track which increase

2.5X lifetime of the HDD11. Support H.265 main stream

Specification

Model Number		AS-6420-2U-4K
Operating System		Embedded LINUX operating system
Image Code Control		Image code quality adjustable, variable bitstream and constant bitstream optional
Dual Stream		Each channel can set main stream and sub stream
Video Standard		4K(38402160)30fps/s /3MP(20481536) 30fps/s /1080P(1920×1080)30fps/s / 960P(1280×960)/720P(1280×720)30fps/s
Monitoring Image Quality		4K(38402160)/4MP(25601600)/1080P(1920×1080) / 960P(1280×960)/ 720P(1280×720)
Image Motion Detection		Each screen can set multiple detection areas and set 6-level sensitivity
Recording Playback Quality		Any 9ch 960P/720P playback, 4ch 1080P/3MP playback simultaneously
Region Cover		Every channel can set 4 cover regions(IPC Support)
Recording Mode		Support manual , auto, dynamic detection, alarm trigger record mode
Backup Way		Support U disk, USB mobile HDD, USB DVD-RW, network storage and backup(Partly needs IPC Support)
Operation Way		Mouse, Keyboard
Local Login		Username and password
Recording Storage		Local HDD, network
External Ports	Video Input	64×(38402160)+sub[960576]+4Ref. +4Play 64Channel 8MP IPIP Camera
		64×(20481536)+sub[960576]+4Ref. +9Play 64Channel 3MP IPIP Camera
		64×(19201080)+sub[960576]+4Ref. +16Play 64Channel 2MP IPIP Camera
	Audio Input	64/36/25/16 network audio input
