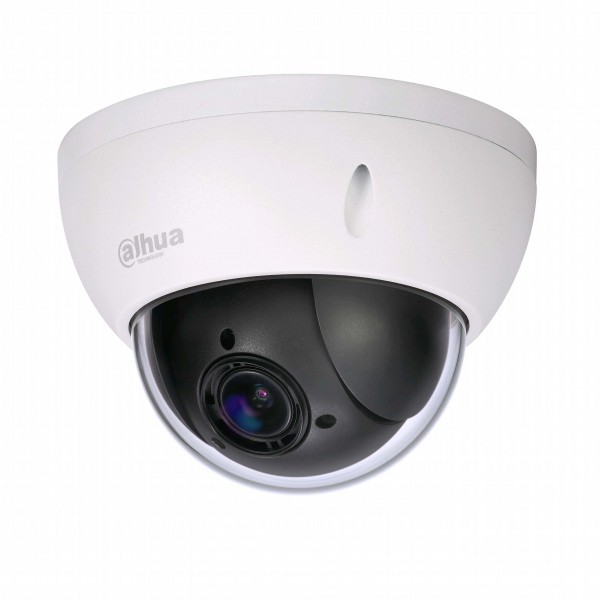

dahua 2Mp Full HD Network Mini PTZ Dome Camera 3x optical...

Model

DH-SD32203S-HN

Camera

Image Sensor

1/2.8” Exmor CMOS

Effective Pixels

1944(H) x 1092(V), 2 Megapixels

Scanning System

Progressive

Electronic Shutter Speed

1/1 - 1/30,000s

Min. Illumination

Color: 0.05 lux@F1.6, B/W: 0.005 lux@F1.6

S/N Ratio

More than 50dB

Camera Features

Day/Night

Auto(ICR) / Color / B/W

Backlight Compensation

BLC / HLC / DWDR

White Balance

Auto, ATW, Indoor, Outdoor, Manual

Gain Control

Auto / Manual

Noise Reduction

2D / 3D

Privacy Masking

Up to 24 areas

Digital Zoom

16x

Lens

Focal Length

3.0mm ~ 9.0mm(3x Optical zoom)

Max Aperture

F1.6 ~ F2.7

Focus Control

Auto / Manual

Angle of View

H: 116.5° ~ 34.5°

Close Focus Distance

1000mm~1500mm

PTZ

Pan/Tilt Range

Pan: 0° ~ 360° endless; Tilt: 0° ~ 90°, auto flip 180°

Manual Control Speed

Pan: 0.1° ~ 240°/s; Tilt: 0.1° ~160°/s

Preset Speed

Pan: 240°/s; Tilt: 160°/s

Preset

80(DH-SD), 255(Pelco-P/D)

PTZ Mode

5 Pattern, 8 Tour, 5 Auto Scan, Auto Pan

Speed Setup

Human-oriented focal length/ speed adaptation

Power up Action

Auto restore to previous PTZ and lens

status after power failure

Idle Motion

Activate Preset/Pan/Scan/Tour/Pattern if there is

no command in the specified period

Video

Compression

H.264 / MJPEG

Resolution

1080P(1920×1080)/720P(1280×720)/

D1(704×576/704×480)/CIF(352×288/352×240)

Frame Rate

Main Stream

1080P/D1(1 ~ 25/30fps), 720P(1~50/60fps)

Sub Stream

D1/CIF(1 ~ 25/30fps)

Bit Rate

H.264: 56K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps

Audio

Compression

G.711a / G.711u (32kbps) / PCM (128kbps)

Interface

1/1 channel In/Out

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP,

ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP,

DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour

ONVIF

ONVIF Profile S

Max. User Access

20 users

Smart Phone

iPhone, iPad, Android, Windows Phone

Auxiliary Interface

Memory Slot

Micro SD, Max 64GB

General

Power Supply

DC12V, PoE(802.3af)

Power Consumption

10W

Working Environment

-20ºC ~ 60ºC / Less than 90% RH

Ingress Protection

IP66

Vandal Resistance

IK10

Dimensions

Ø160(mm) x 132(mm)

Weight

1.33kg
