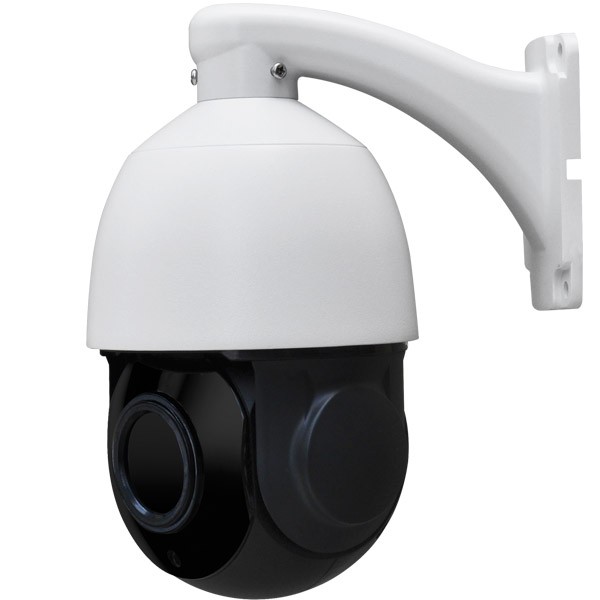

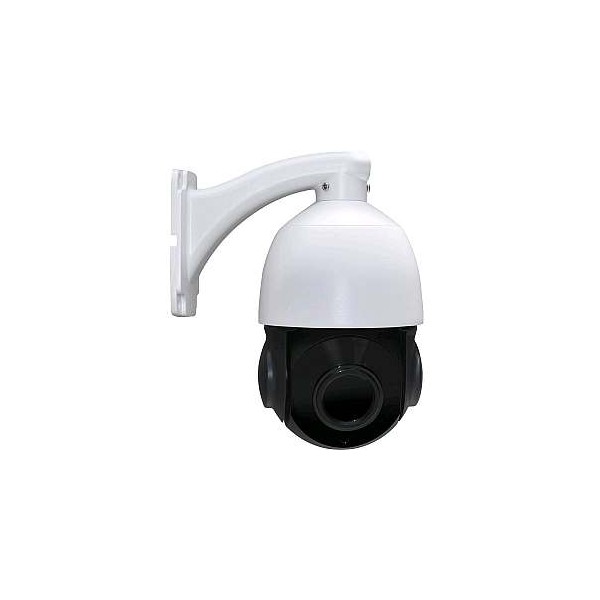

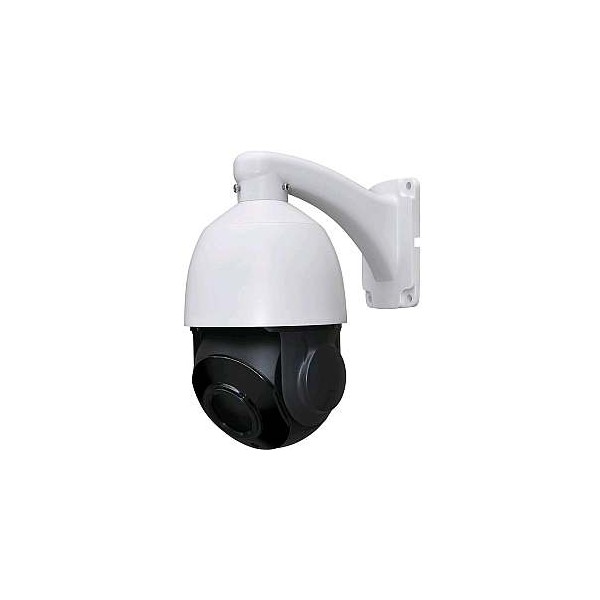

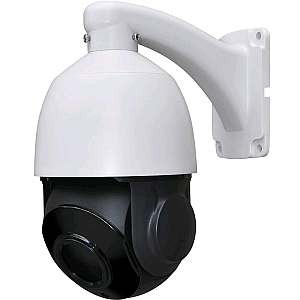

1080P 18X AHD Mini High Speed Dome PTZ Camera 5-90mm

1080P 18X AHD Mini High Speed

Dome PTZ Camera 5-90mm

Quick Details

Place of Origin: Guangdong, China (Mainland)

Type: Digital Camera

Style: Dome Camera

Sensor: CMOS

Technology: Pan / Tilt / Zoom

Special Features: Waterproof / Weatherproof

Lens: 5-90mm

Resolution: 1920*1080

Certificate: CE FCC RoHs

Power Supply: DC 12V

Application:

It can be widely used in wide range environments which required

monitoring, e.g. river, forest, highroad, railway, airport, port, oil field,

sentry, piazza, park, scenic zone, street, station, venue,

parcel surrounding, and etc.

Product Overview:

IR Function:

1. Illumination 0Lux.

2. 6PCS infrared lights, divided into two groups , no flashlight,

effective IR distance 60m.

3. IR distance change with the optical zoom.

4. Constant current circuit design, infrared lamp life of 30,000 hours.

System Function:

1.HD-AHD 2.0MP 1/2.8" CMOS Sensor.

2.Precision motor-driven,keen responsive,smoothly operation,the precision

deviation less than 0.1 degree.

3. Video output Effective pixels:1920*1080.

4. Support Coax cable control,500m transmission distance.

5. Support lightning protection, anti-surge, anti-surge function.

6.Protection Grade: IP66.

Zoom module function:

1. 18x optical zoom .

2. Support auto iris, electronic shutter, automatic white balance,

backlight compensation.

3. Illumination Color: 0.05Lux, B/W: 0.005Lux 0Lux with IR.PTZ

Function:

1.360°endless pan range and 0°- 90°tilt range, support auto-flip,

non-surveillance blind area

2. Pan control speed 0.1°~200°/s, tilt control speed 5°~17°/s

3. Pan preset speed 200°/s, tilt preset speed 17°/s

4. Support 220 preset 8 patrols, each patrol can contain up to 32 presets ,

4 patterns, can totally record up to 10 minus. Support AB scan and zone limit.

5.Proportional zoom function, rotation speed can be adjusted

automatically according to zoom multiples6. Support park action,

presets/pattern/patrol/pan scan can invoke automatically after a

defined time of inactivity(contain the idling condition after the power

supply has been turn on)



Specification:
