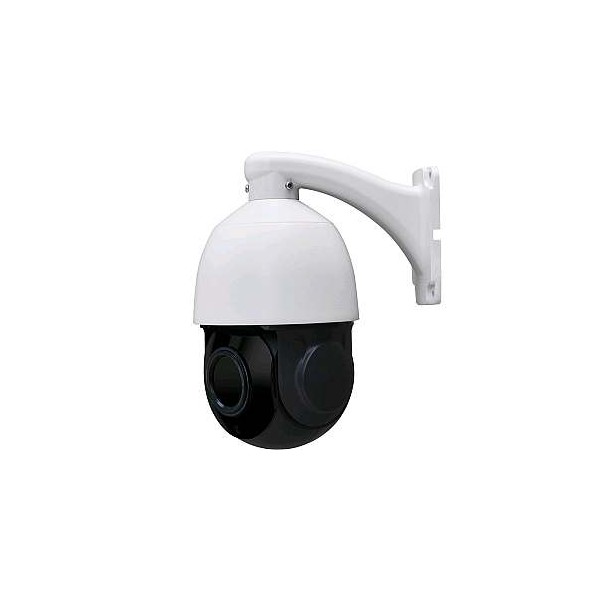

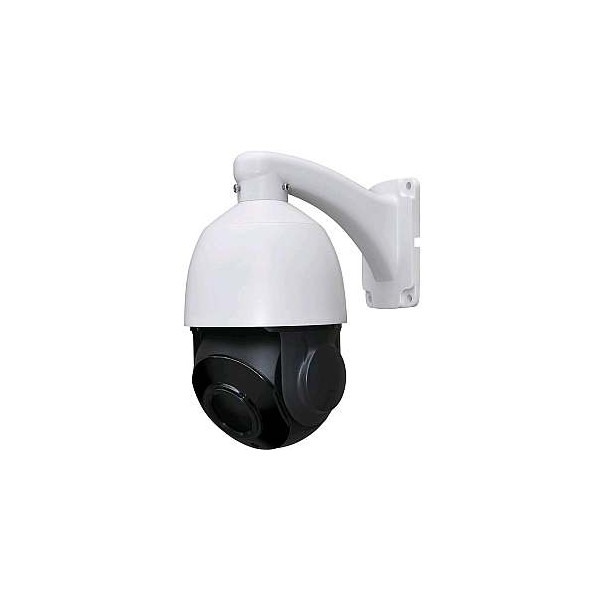

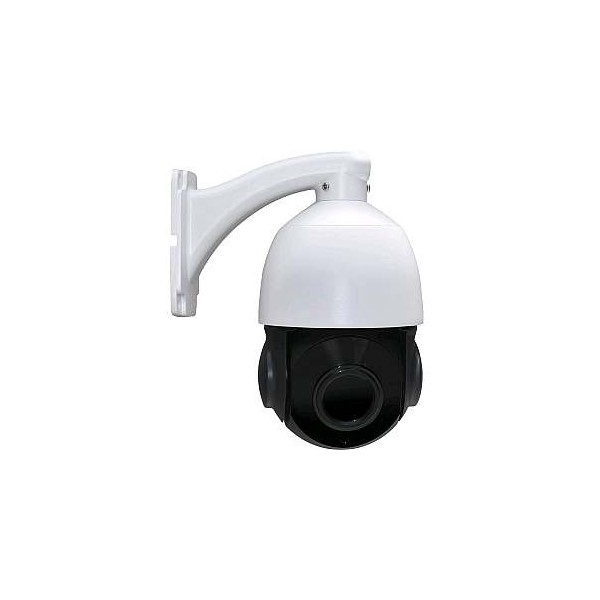

HD CVI PTZ 1080P 10X zoom.

30 andre varer i samme kategori:

HD CVI PTZ 1080P 10X zoom.

High Speed Dome

 MY-86C2-UB-I

1 stk.

Application:

It can be widely used in wide range environments which required monitoring,

e.g. river, forest, highroad, railway, airport, port, oil field, sentry, piazza, park,

scenic zone, street, station, venue, parcel surrounding, etc.

Product Overview:

● HD-CVI 2.0MP 1/3” Ex-view Cmos,10X Optical zoom；

● Precision motor-driven,keen responsive,smoothly operation,the precision

deviation less than 0.1 degree

● Support lightning protection, anti-surge, anti-surge function;

● Protection Grade: IP66

● Support Coax cable control, 500m transmission distance

● Support OSD English Menu

Features:

● 6 PCS high-power infrared light, turn divided into two groups ,

no flashlight effect, IR distance 60m.

● 360°endless pan range and 0°- 90°tilt range, support auto-flip,

non-surveillance blind area

● Pan control speed 0.6°~200°/s, tilt control speed 3.5°~35°/s

Pan preset speed 200°/s, tilt preset speed 35°/s

● Support 220 preset 8 patrols, each patrol can contain up to 32 presets, 4 patterns, can totally record up to 10 minus. Support AB scan and zone limit.

● Proportional zoom function, rotation speed can be adjusted automatically

according to zoom multiples

● Support park action, presets/pattern/patrol/pan scan can invoke automatically

after a defined time of inactivity (contain the idling condition after the power

supply has been turn on)


Parameter/Model

MY-86C-UB-I



Image Sensor

1/3”Ex-view 2.0 Mega Pixel CMOS

Effective pixels

1920X1080

illumination

Color: 0.1Lux, B/W: 0.001Lux


Pan/Tilt/Pan+Tilt/Off

Exposure mode

Manual/Auto

S/N

≥52dB

Back-light                compensation

On/off

Zone scanning

support

Shutter Speed

1/30-1/30,000s

Scan System

Progressive Scan

Synchronous

Internal Synchronization

Day/Night

Support IR-CUT Color turn Black

Focus mode

Manual/Auto/Auto Focus

Lens initialization

Internal

Optical zoom

10X optical zoom,f=5-50mm

Min. Focal Length

100mm~1000mm

Angle of view

H:47°-5.3°V：35.6°-3.96°

penetrate the fog

support



OSD Menu

English

IR Distance

60M

IR Angle

Following zoom module 3 groups adjust

Pan speed

360° endless,0.6°-200°/s

Tilt speed

0°-90°(support auto flip) 3.5-35°/s

Tilt range

0°-90°,auto flip180°

Manual Speed

High,Middle,Low speed adjustable

Proportional Zoom

Support

Preset

220

Patrol

8, each patrol can contain up to 32 presets

Pattern scan

4, each group can recording 100 action

Scan between two presets

support

Park Action

support, selectable preset , cruise , pattern scan ,

 two- line scan , automatic level

Zone Limit

Support

Video Output

HD CVI,PAl/NTSC,BNC Cable



Power supply/Control

DC 12V 2A, RS485

Power consumption

20 MAX(heater)

Working Temperature/Humidity

-20℃-60℃,≤90%RH(frostless)

Protection Grade

TVS3000V lightning protection, surge protection

and voltage transient protection,

weather proof (for outdoor): IP66

Package dimension(mm)

225*245*230mm

Weight(Kg)

3.0kg
