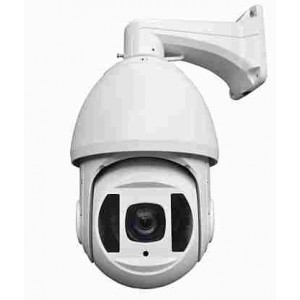

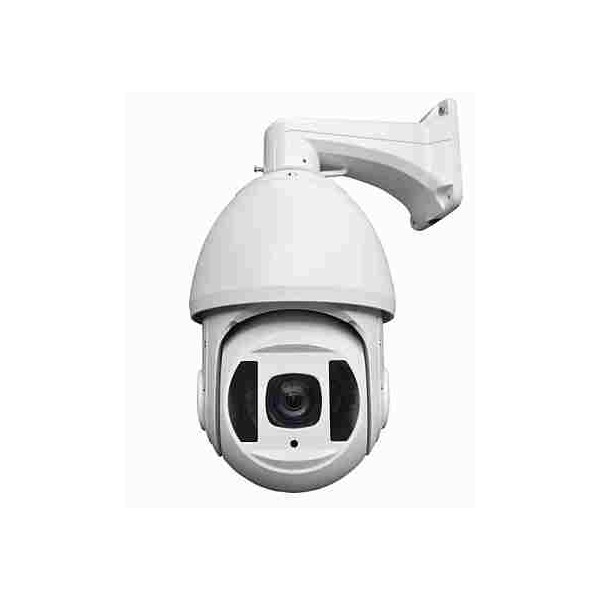

2.0 MP IR Intelligent High Speed Dome
IP Camera 33X Zoom
CSJ-NH6RK-200H33
Function Characteristic:
1.Adopt high performance 1/2.8" CMOS.
2.Support dual stream compression technology.
3.Using imported dot matrix large glass lamps and imported high-speed g
lass lamp light, to ensure the IR distance 150 m; product life can reach 30,000 hours.
4.Intelligent infrared control technology can automatically control the infrared
light according to the environment. Under the premise of ensuring monitoring
results, it can effectively enhance the infrared lamp's life and ensure the product stability.
5.Constant current circuit design, to ensure stable operation of the infrared light.
Andit won't reduce the infrared lamps' life which caused by the changing of the power supply.
6.Efficient cooling structure, using physical means heat, which can effectively reduce the
temperature of the inside dome camera, to prevent the inner to be fogging, and to ensure the
machine's stability.
|
|
CSJ-NH6RK-200H33 |
|
|
Signal model |
PAL/NTSC |
|
|
Image sensor |
1/2.8" CMOS |
|
|
Effective pixel |
1920(H)x1080(V) |
|
|
Horizontal resolution |
1080P |
|
|
Minimum illumination |
Color:0.01Lux,B/W:0.001Lux |
|
|
S/N radio |
>60dB |
|
|
Manual call speed |
0.01°-180°/s |
|
|
Protocol |
PELCO D,PELCO P |
|
|
Presets call speed |
Max. 200°/s |
|
|
synchronization system |
Inner synchronization / power supply synchronization |
|
|
IR life |
30000 hours |
|
|
Support |
AB preset scan, patrol scan, idle function, focus zoom, timer function, |
|
|
|
subject of dome camera |
|
|
|
|
|
|
IR light angle |
Infrared zoom matching technology |
|
|
IR light power |
Auto |
|
|
IR system |
Auto/Color/Black and white |
|
|
Cooling structure |
Dustproof structure outside the circle |
|
|
Fan control |
ICR |
|
|
Menu |
Chinese/English |
|
|
Power supply |
DC12V/4A |
|
|
Protection level |
IP66 |
|
|
Work temperature |
-35C~+65C |
